Quick Details

  • Brand Name: Flysight
  • Model Number: RC306+TX5820 long range wireless video transmitter FPV system
  • Use: Audio / Video Players
  • Place of Origin: Guangdong, China (Mainland)
  • Frequency: 5.8GHz
  • Channel: 8channel
  • Style: long range wireless video transmitter FPV system
  • Voltage: 6-28V
  • Current: 150mha
  • Transmitting Distance: 8km-10km in Open Area
  • Application1: RC Helicopter
  • Application2: RC Airplane
  • Application3: RC Quadcopter
  • Application4: RC Modles

Packaging & Delivery

Packaging Details: Standard gift box
Delivery Detail: In time

Specifications

1) With channel button on change channels easily
2) Dispaly channel number
3) Channel memory function for power-off

9977 5.8G 2000mw long range wireless video transmitter FPV system



Unique Feature:

1.  With channel button to change channels easily
2.  Channel memory function for power-off

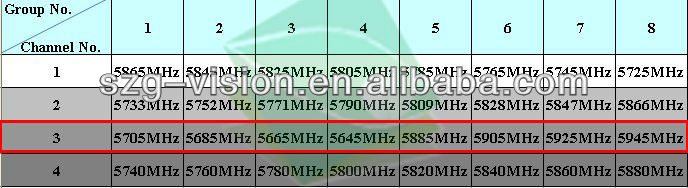

3.  Four groups frequencies can be offered(3rd groups as default):

Channel Group 1# :
CH1: 5865MHz CH2: 5845MHz CH3: 5825MHz CH4: 5805MHz
CH5: 5785MHz CH6: 5765MHz CH7: 5745MHz CH8: 5725MHz

Channel Group 2# :
CH1: 5733MHz CH2: 5752MHz CH3: 5771MHz CH4: 5790MHz
CH5: 5809MHz CH6: 5828MHz CH7: 5847MHz CH8: 5866MHz

Channel Group 3# :
CH1: 5705MHz CH2: 5685MHz CH3: 5665MHz CH4: 5645MHz
CH5: 5885MHz CH6: 5905MHz CH7: 5925MHz CH8: 5945MHz

Channel Group 4# :
CH1: 5740MHz CH2: 5760MHz CH3: 5780MHz CH4: 5800MHz
CH5: 5820MHz CH6: 5840MHz CH7: 5860MHz CH8: 5880MHz


Keywords:

1.  Very light and ultra mini size
2.  The mini but powerful 5.8G 2000mw transmitter would make your fly to 8-9 km away with only the stock antenna, advanced build-in regulator offers this transmitter very wide power input range.
3.  5.8G NEW 2000mw transmitter is just light, compact and powerful, a very good choice for 5.8G middle range FPV.
4.  This transmitter is compatible with all our 5.8G VRX like RC305, RC805 , AIO goggles and 5.8G DVR DV01.

Specificaiton:
Transmitter frequency:5645-5945MHz;8CH
Transmitting Power:2000mW/26dBm
Transmitting distance:>7000m(open area)
Frequency control:built-in frequency and phase lock loop
AV input:analog AV signal input
ANT connector:SMA(inside the needle)
power supply:6.5-15 volts
Current supply:300mA
Size:55*26*17mm



Remark:
The transmitter's power input is ranging from 7-12V,however the voltage outptu from the TX for the camera us 0.5V,lower than the input power.It's suggested to use 3S lipo 11.1V battery.

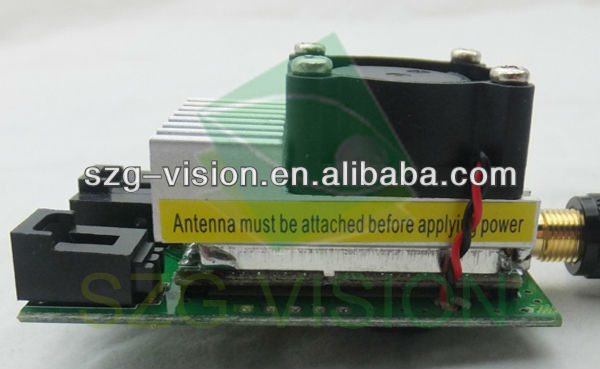

Note:antennas must be attched before powering on.






Application Reference:

Standard Antenna
CA02 5.8G FPV Omnidirectional Cloverleaf Antenna(Common Quality)
CA01 5.8G FPV Omnidirectional Cloverleaf Antenna(Good Quality)

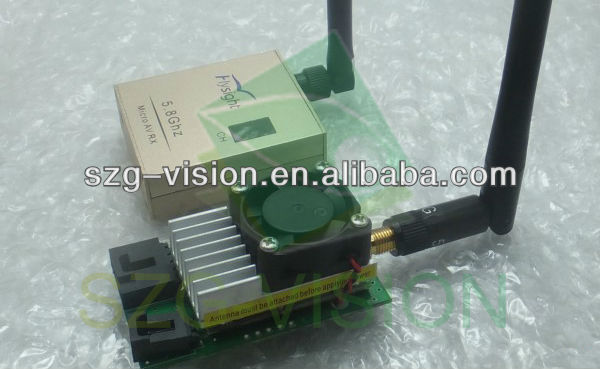

Standard accessories for the RC306+TX5820 Set
Newest Pushbutton Rx
Newest Pushbutton Tx

Quick Details:
Product NameFPV 5.8G 200MW wireless tranmsitter and receiver combo
Model NumberRC306+TX5812
Brand NameFlysight
Place of OriginShenZhenChina
Min. Order Quantity50Negotiable acceptable
Payment TermsT/T , Western Uniton, Paypal
Supply Ability3000set half month
Delivery time8000set in stock eavery month

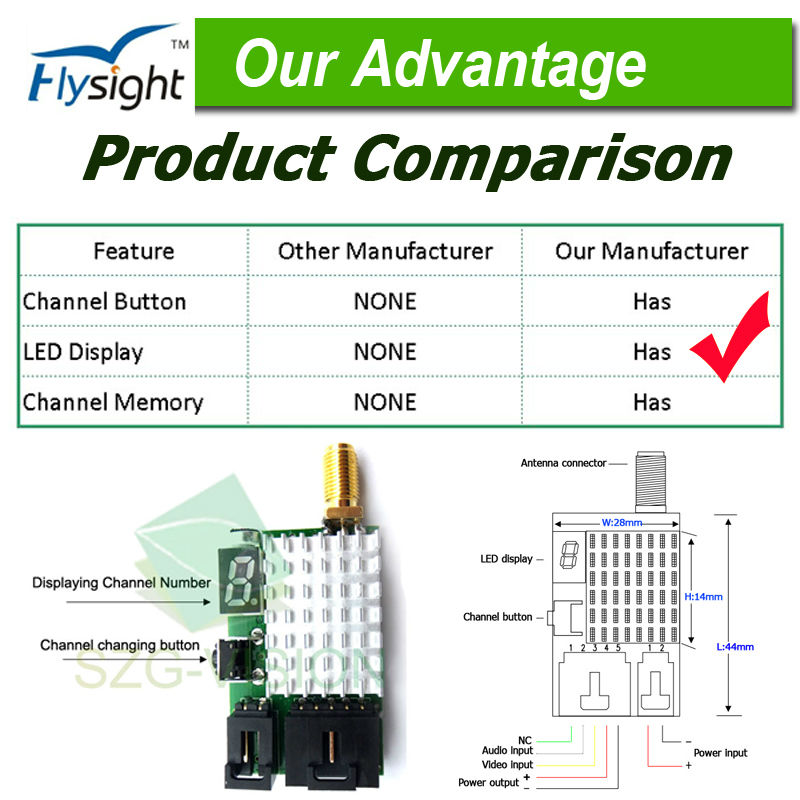

Unique Feature:
1With Channel button to change channels easily
2Display channel number
3Channel memory function for power-off
Frequency groups:
CH.Flysight AFlysight BFlysight EAirwaveReminding
Ch1:5865Mhz5733Mhz5705Mhz5740MhzFour groups frequencies can be offered
(3rd groups as default)
Ch2:5845Mhz5752Mhz5685Mhz5760Mhz
Ch3:5825Mhz5771Mhz5665Mhz5780Mhz
Ch4:5805Mhz5790Mhz5645Mhz5880Mhz
Ch5:5785Mhz5809Mhz5885Mhz5820Mhz
Ch6:5765Mhz5828Mhz5905Mhz5840Mhz
Ch7:5745Mhz5847Mhz5925Mhz5860Mhz
Ch8:5725Mhz5866Mhz5945Mhz5860Mhz
A quick guance:
Frequency5.8G
Channel Number8channel
Working Voltage6-28V
Working CurrentRC306 Rx :60mHA
TX5812 Tx :150mHA
Operate modeChannel Frequency selection with digitial display
Unobstructive Effective RangeAbove 2000meters open area
Net WeightRC306 Rx: 35g
TX5812 Tx :16g
Dimension(L*W*H)RC306 Rx : 55*40*15mm
TX5812 Tx : 57*27.2*12mm
MeterailRC306 Rx: aluminium alloy extrusion shell
TX5812 Tx: 5.8G Tx module with heat snik
KeywordA new FPV dimension for your hobby
Detailed Description-Rx:
ModelRC306
Receiving Frequency5665-5945Mhz
Receiving Sensitivity-90dBm
Frequency ControlBuilt-in Frequency and with channel button to change channels easily
Output Frequency5.8Ghz
Channel Number8Channel optional
Working Voltage6-28V
Working Current60mHA
AV output1Ch
Net Weight35g
Dimension(L*W*H)55*40*15mm
Detailed Description-Tx:
ModelTX58025
Transmitter Frequency5665-5945Mhz
Transmitting Power25mW,14dBi
Transmitting DistanceAbove 200m open area
Frequency ControlBuilt-in Frequency and with channel button to change channels easily
Output Frequency5.8Ghz
Channel Number8Channel optional
Working Voltage6-28V
Working Current60mHA
Net Weight35g
Dimension(L*W*H)55*40*15mm

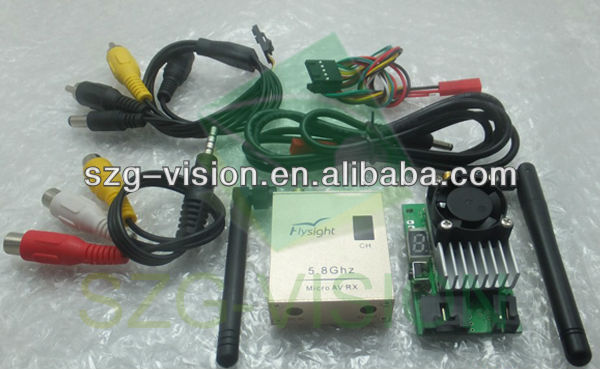

Purchase Includes:
5.8G transmitter x 1
5.8G receiver x 1
5.8G rubber antenna x 2
RCA cable x 1
Pin cable x 2

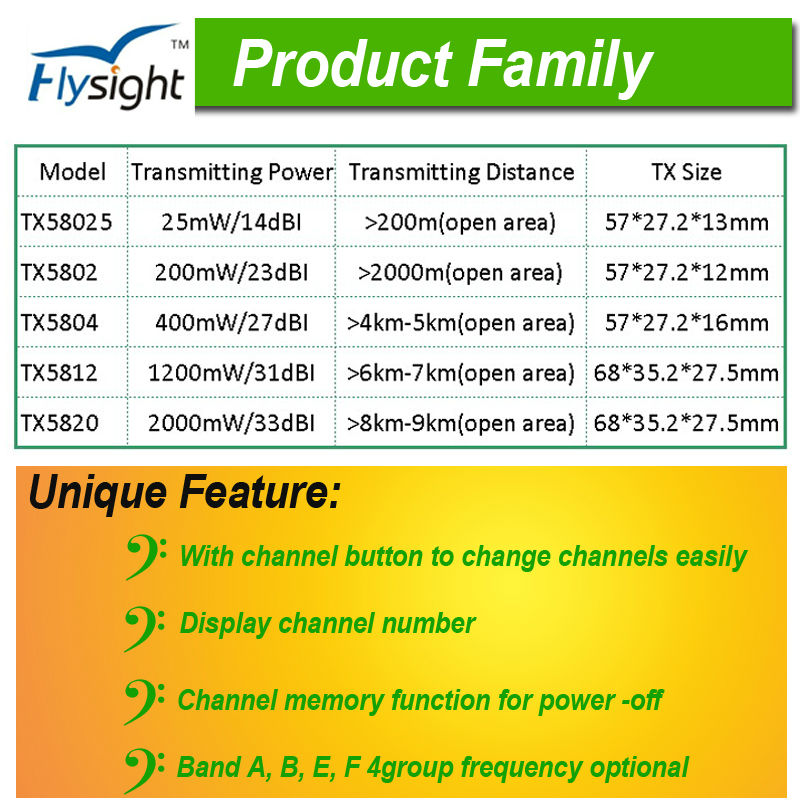

Other products recommended:
RC306+TX58025.8G 200MW wireless AV Rx & Tx Set
RC306+TX58025.8G 200MW wireless AV Rx & Tx Set
RC306+TX58045.8G 4000MW wireless AV Rx & Tx Set
RC306+TX58205.8G 2000MW wireless AV Rx & Tx Set
